Upgrade Your Municipal Sewage Treatment Process with Our
High-Performance Water Treatment Equipment
EVEREST is the Asian R&D and manufacturing base of
theinternational DAF (dissolved air flotation) originator, the
originalKROFTA of USA and also the global professional DAF
manufacturer.The upgraded DAF products developed by the team of
doctorsJames.Madison and Peter.keatinge as chief designers of the
originalKROFTA-shallow ion DAF and Ultra high-speed ion DAF series,
etc.serve more than 8500 enterprises worldwide. The ion DAF
processachieves disruptive change of separation technology, and
itsoutstanding performance has quickly completed
professionalupgrading of KROFTA series products.EVEREST brings not
only the perfect separationand clarification technology, but also
thefuture of water treatment.
Description:
1,Pretreatment of municipal sewage for improvement of indicators
Process flow diagram
| Design water yield | 80000m3/d,coefficient1.3 |
| Model selection | High-efficiencyDAF,MST-S14 |
| Quantity | 4sets |
| Floor area | 1000m² |
| Before DAF treatment | Grease<30mg/L,COD: 500-700mg/L,SS: 200-300mg/L |
| After DAF treatment | Grease<1mg/L,COD<300mg/L,SS<25mg/L |
| Operating costs | Operating costs <0.02 KW.h/T |
| PAC | 10-30ppm |
| PAM | 0-0.5ppm |
2,Deep treatment of municipal sewage for improvement of indicators

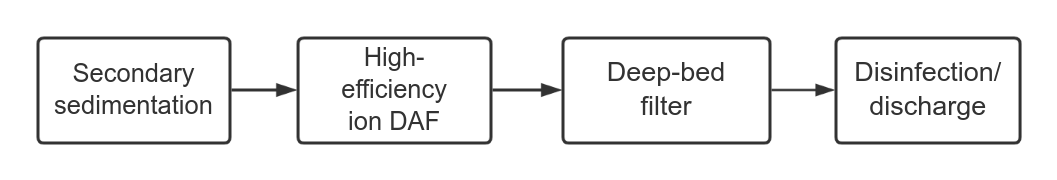

Process flow diagram
| Design water yield | 240000m³/d,coefficient1.3 |
| Model selection | High-efficiencyDAF,MST-S18 |
| Quantity | 6 sets |
| Floor area | the equipmentis seton the watertank without occupation of land |
| Before DAF treatment | COD≈65mg/L,SS≈25mg/L,TP≈0.5mg/L |
| After DAF treatment | COD: 24~35mg/L,Ss <10 mg/L, TP <0.1mg/L |
| Operating costs | Operating costs <0.02 KW.h/T |
| PAC | 5-20ppm |
| PAM | 0-0.1ppm |
3,Deep treatment of municipal sewage for improvement of indicators
Process flow diagram
| Design water yield | 250000m³/d,coefficient1.3 |
| Model selection | H⁺2500 |
| Quantity | 5 sets |
| Floor area | 1200㎡ |
| Before DAF treatment | COD＜40mg/L,SS＜20mg/L,TP＜0.5mg/L |
| After DAF treatment | COD＜25mg/L,SS<3mg/L, TP <0.1mg/L |
| Operating costs | Operating costs <0.02 KW.h/T |
| PAC | 5-10ppm |
| PAM | 0-0.1ppm |
4,Deep treatment of municipal sewage for improvement of indicators
Process flow diagram
| Design water yield | 300000m³/d,coefficient1.3 |
| Model selection | MST-S22 |
| Quantity | 6 sets |
| Floor area | 2900㎡ |
| Before DAF treatment | COD＜40mg/L,SS＜20mg/L,TP＜0.5mg/L |
| After DAF treatment | COD＜25mg/L,SS<3mg/L, TP <0.1mg/L |
| Operating costs | Operating costs <0.02 KW.h/T |
| PAC | 5-20ppm |
| PAM | 0-0.1ppm |
Technology
1,AIR DISSOLVED SYSTEM:Unique technologyy----- High frequency common
railinjection,Powerful centrifugal force from high-speed rotation;
micron airintegrated injection system, the ratio of dissolved air
to water wasclose to the maximum value of Henry's law in 3 seconds
(27%),provide a platform for large scale micro bubbles, the
dynamicfactors are greatly reduced.
2,MICRO BUBBLEMANUFACTURING SYSTEM:Special structure for fast phase separation in microsecond, The 2
phases of watermolecules and air molecules in the dissolved gas
water are separated from each other indifferent directions in less
than 1 microseconds, form a uniform 3-7 m charge
bubbleInstantaneously, Under the condition of the same volume of
dissolved air, the bubbledensity is geometrically fission, Contact
area expansion of micro bubble flotation,improve the surface
tension of water molecules by integrated charged bubbles,accelerate
the bubble floating rate, adsorption of colored groups and some
hydrophiliccolloid. The dissolved air volume is a fixed value, the
service area of the micro bubble isinversely proportional to the
square of the diameter, the service area of the microbubble can be
expanded to hundreds of times, and the density of the micro bubble
isincreased to several thousand times, Theoretical research and
experimental resultsshow that the smaller the diameter of the micro
bubble, the stronger the adsorption ofsuspended matter.
Product series
High-efficiency DAF(S series) | PROFESSIONAL APPLICATIONS: It is highly efficient used in municipal raise standards,
desalination, water reuse.river and reservoir water, tap water,
petroleum and chemical industry , mineralprocessing, coal,
slaughtering, breeding industry, food and beverage, brewing.kitchen
waste, refuse leachate, tanning, pharmaceutical,
surfacetreatment(electroplate,PCB, pickling) electroplating, bath
water,Papermaking, pulping, printing and dyeing for waste water
treatment and sludgeconcentration, material recovery, oil removal,
algae and phosphorus removal. |
High-efficiency ion DAF (F series) | PROFESSIONAL APPLICATIONS: Pretreatment and deep treatment of all kinds ofwastewater, in place of high-efficiencysedimentation tank,Oil-water separation
of various oily wastewaterWastewater treatment in surface
treatmentindustry (painting, electroplating and acid pickling.etc.)
Pretreatment and deep treatment of wastewaterin printing and dyeing
industry |
Integrated high-speed ion DAF(H series) | PROFESSIONAL APPLICATIONS:
Treatment of domestic sewage in small rural townsImprovement of
indicators of municipal sewageSea water desalination,Control of
lakes and riverways (high phosphate and high algae),Landscape
water,Tap water,Reuse of industrial water,Treatment before coating
filmReuse of reclaimed water |
Ultra high-speed ion DAF(H+ series) | PROFESSIONAL APPLICATIONS:Tap water
Sea water desalination
Limit removal of algae and phosphateMunicipal sewage pretreatment,
deep treatment and indicatorimprovement upgrading projectsEmergency
treatment of water bodiesTreatment of black and stinking water in
waterways, water ofreservoirs, water of lakes and algal water, etc. |
High-efficiency concentrated DAF(G series) | PROFESSIONAL APPLICATIONS:
High concentration water treatmentAquaculture, berry, table and
kitchen, paper deinking, reductionof printing and dyeing alkali,
landfill leachate, etc.Pretreatment of high concentration
wastewater,Concentration of activated sludge |
