Innovative Water Treatment Equipment for Effective Grease
Wastewater Treatment in Dairy Processing Industry
Product Overview
The Lanmera SedenTec™ Grease Wastewater Treatment System is a
cutting-edge solution designed to tackle high-fat, oil, and grease
(FOG) contamination in industrial wastewater. Built on the proven
"shallow pond theory" by Prof. Hazen, our system maximizes
sedimentation efficiency through a unique inclined plate design,
delivering unmatched performance for industries like dairy
processing, petrochemicals, mining, and more.
Core Technology
Advanced Shallow Sedimentation Design: Optimized inclined plates
(60° angle, 8–10 cm spacing) exponentially increase effective
sedimentation area, accelerating separation of grease/oil from
water.
Space-Saving Structure: Compact footprint reduces land use by
1.5–2x compared to traditional systems—ideal for facilities with
limited space.
Zero-Clogging Guarantee: Self-cleaning inclined plates prevent
blockages, ensuring uninterrupted operation and minimal
maintenance.
Uniform Flow Distribution: Patented equal-resistance water
distribution eliminates dead zones and vortices for consistent,
high-quality output.
Why Choose Lanmera SedenTec?
✅ Industry-Leading Efficiency: Rapid grease/oil removal with
>95% separation rates.
✅ Durability: Corrosion-resistant materials withstand harsh
industrial environments.
✅ Cost-Effective: Lower energy consumption and reduced downtime
translate to long-term savings.
✅ Versatile: Adaptable to diverse wastewater types, from dairy
processing to machining coolants.
Key Applications
Dairy Processing: Effectively treats grease-laden wastewater from
milk, cheese, and yogurt production.
Petrochemical & Mining: Removes oil contaminants from refinery and
extraction wastewater.
Meat Processing/Slaughterhouses: Manages high-fat organic waste
streams.
Paper/Pulp Mills: Clarifies white water for recycling.
Machining & Metalworking: Treats oil-emulsion coolants and cutting
fluids.
Model specifications and related technical parameters
| Model | Capacity (m³/h) | Aeration machine (KW) | Slag scraper (KW) | Mixer (KW) | Dimension (L × W × H) (m) | Inlet (A) | Outlet (B) | Sludge outlet (C) | Empty mouth (D) |
| WPW-5 | 5 | 1.5 | 0.75 | 4.0 | 4.0 × 1.0 × 1.4 | 80 | 80 | 50 | 50 |
| WPW-10 | 10 | 2.2 | 0.75 | 5.0 | 5.0×1.2×1.4 | 100 | 100 | 80 | 80 |
| WPW-15 | 15 | 2.2 | 0.75 | 5.0 | 5.0 × 1.3 × 1.4 | 125 | 125 | 125 | 80 |
| WPW-20 | 20 | 2.2 | 0.75 | 5.2 | 5.2 × 1.3 × 1.4 | 150 | 150 | 150 | 80 |
WPW-30 | 30 | 2.2 | 0.75 | 6.0 | 6.0 × 1.6 × 1.7 | 150 | 150 | 150 | 80 |
WPW-40 | 40 | 2.2/4.4 | 1.1 | 7.0 | 7.0 × 1.6 × 1.8 | 200 | 200 | 150 | 80 |
WPW-50 | 50 | 4.4 | 1.1 | 7.5 | 7.5 × 1.8 × 1.8 | 200 | 200 | 150 | 80 |
WPW-70 | 70 | 4.4 | 1.1 | 9.0 | 9.0 × 2.4 × 1.8 | 200 | 200 | 150 | 80 |
WPW-100 | 100 | 4.4 | 1.1 | 9.5 | 9.5 × 2.4 × 1.8 | 200 | 200 | 150 | 100 |
WPW-120 | 120 | 6.6 | 1.5 | 10.0 | 10.0 × 2.4 × 2.0 | 200 | 200 | 150 | 100 |
WPW-150 | 150 | 6.6 | 1.5 | 11.0 | 11.0 × 2.4 × 2.4 | 250 | 250 | 150 | 100 |
WPW-200 | 200 | 8.8 | 2.2 | 13.5 | 13.5 × 2.6 × 1.8 | 250 | 250 | 250 | 100 |

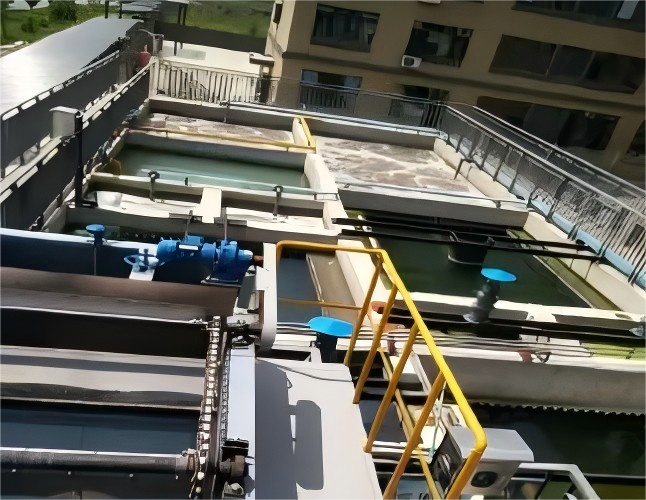

Project Case
Zhejiang Leju Outdoor Products Co., Ltd. Production and Processing
Wastewater Treatment Project. Project scale: 900m³/d |
  |
Certificate
| API-5LD AUTHENTICATION | American Petroleum Institute API 5LC Certificate | ASME Certificate in the United States | EU PED&AD2000 certificate | ABS classification society certification certificate in the United
States | DNV Det Norske Veritas Certificate | RINA Italian Bureau of Shipping Certificate | BV French Bureau of Shipping certification | LR Lloyd's Register Certificate of Approval | Customs Union EAC Certificate | Russian GOST certificate |
 |  |  |  |  |  |  |  |  |  |  |
Global Trust, Local Impact
Deployed in over 15 countries, the Lanmera SedenTec™ system is the
go-to choice for industries prioritizing sustainability,
compliance, and operational excellence. Whether you’re upgrading
existing infrastructure or building anew, our scalable solutions
ensure regulatory compliance and environmental responsibility.
Act Now for Cleaner Operations!
Transform your wastewater management with Lanmera’s innovation.
Contact us today for a customized quote or to request a case study
tailored to your industry.
